L2: Processes, Threads and Synchronization

Processes & Threads

Process

Memory of a process

A program in execution, identified by PID

• Comprises: executable program (PC), global data (OS resources: open files, network connections), stack or heap, and current values of the registers (GPRs and Special)
• Own address space: exclusive access to its data
• Two or more processes exchange data → need explicit communication

Multi-programming (Multitasking):

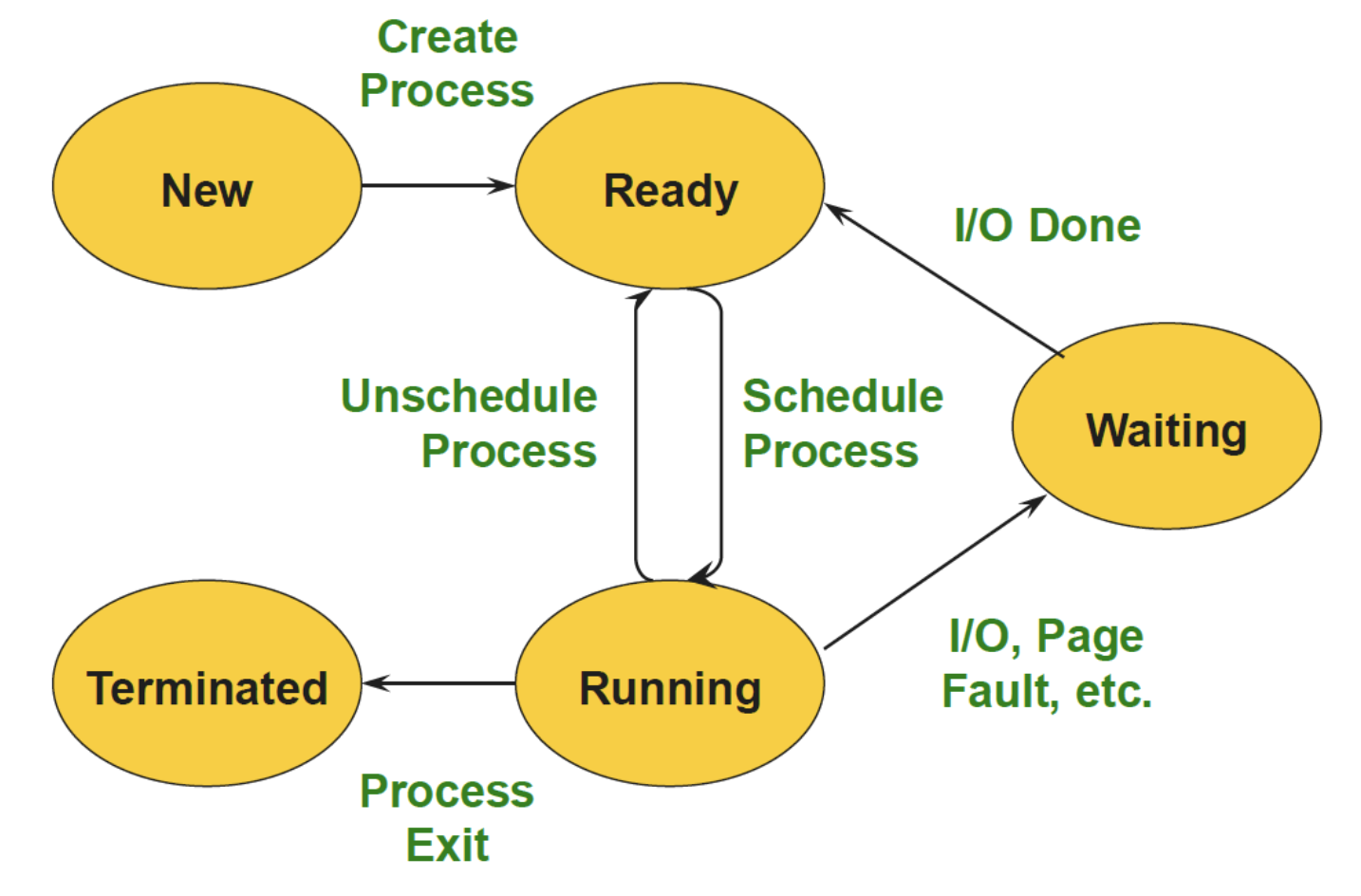

Process State Graph

• Several processes at different stages of execution
  • Need context switch
  • States of the suspended process must be saved → overhead
• 2 types of execution:
  • Time slicing execution → pseudo-parallelism
  • Parallel execution of processes on different resources

IPC: Cooperating processes have to share information

• Shared memory → Need to protect access when reading/writing with locks
• Message passing: Blocking & non-blocking, Synchronous & asynchronous
• Unix specific: Pipes & Signal

Exceptions:

• Executing a machine level instruction can cause exception
• E.g: Overflow, Underflow, Division by Zero, Illegal memory address, Misaligned memory access
• Synchronous: Occur due to program execution
• Have to execute an exception handler

Interrupts:

• External events can interrupt the execution of a program
• Usually hardware related: Timer, Mouse Movement, Keyboard Pressed, etc
• Asynchronous: Occur independently of program execution
• Have to execute an interrupt handler

Disadvantages:

• Creating a new process is costly
  • Overhead of system calls
  • All data structures must be allocated, initialized and copied
• Communicating between processes costly → Go through the OS

Thread

• Extension of process model:
  • A process may consist of multiple independent control flows called threads
  • The thread defines a sequential execution stream within a process(PC, SP, registers)
• Threads share the address space of the process:
  • All threads belonging to the same process see the same value
  • shared-memory architecture
• Thread generation is faster than process generation: No copy of the address space is necessary
• Different threads of a process can be assigned run on different cores of a multicore processor
• 2 types: User-level threads, Kernel threads

User-level threads:

• Managed by a thread library – OS unaware of user-level threads so no OS support
• Advantages: switching thread context is fast
• Disadvantages
  • OS cannot map different threads of the same process to different execution resources → no parallelism
  • OS cannot switch to another thread if one thread executes a blocking I/O operation

Kernel threads:

• OS is aware of the existence of threads and can react correspondingly
• Avoid disadvantages of user-level threads
• Efficient use of the cores in a multicore system

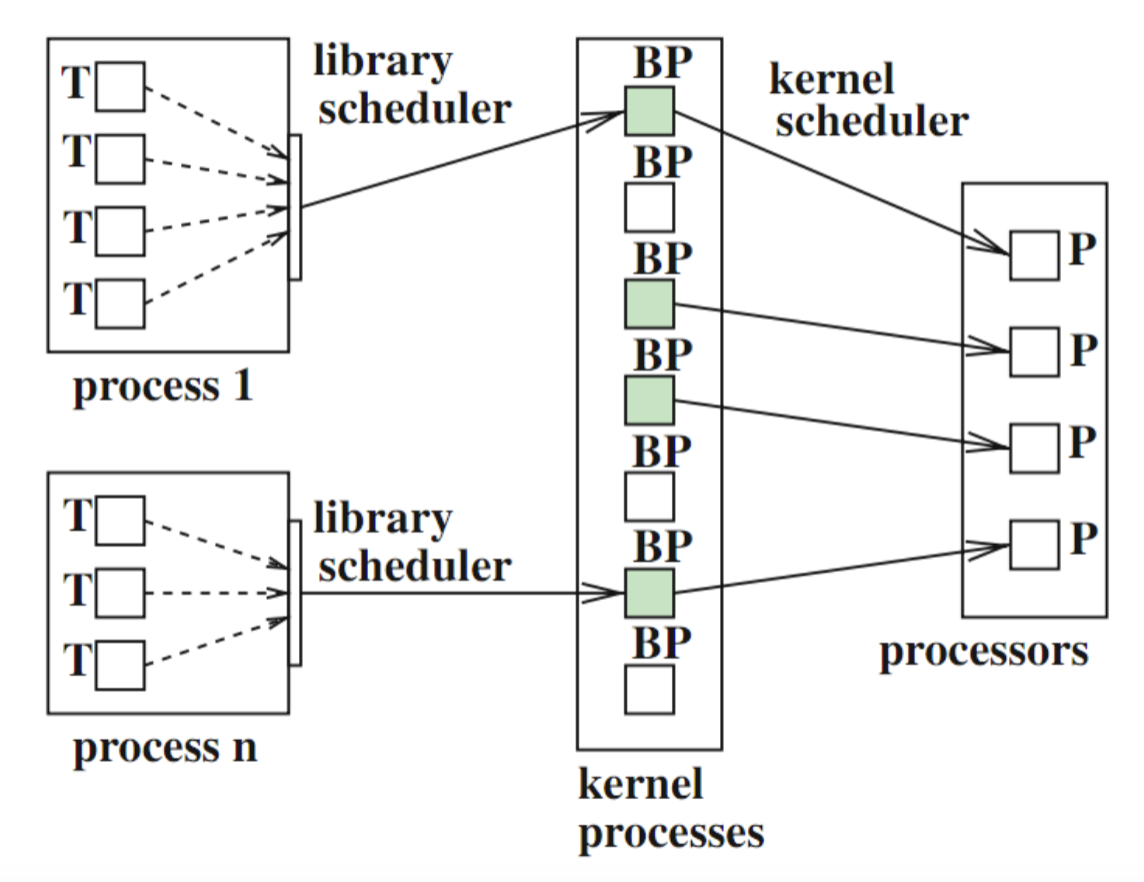

many-to-one mapping

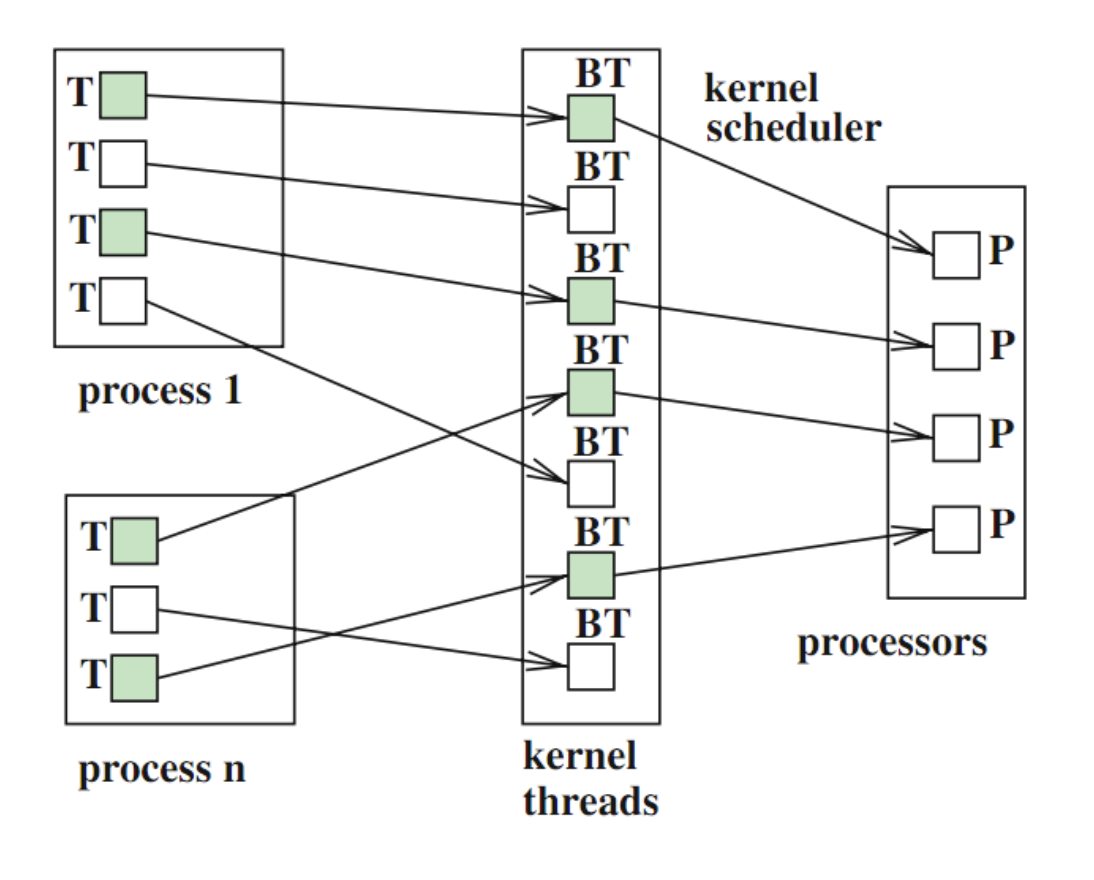

one-to-one mapping

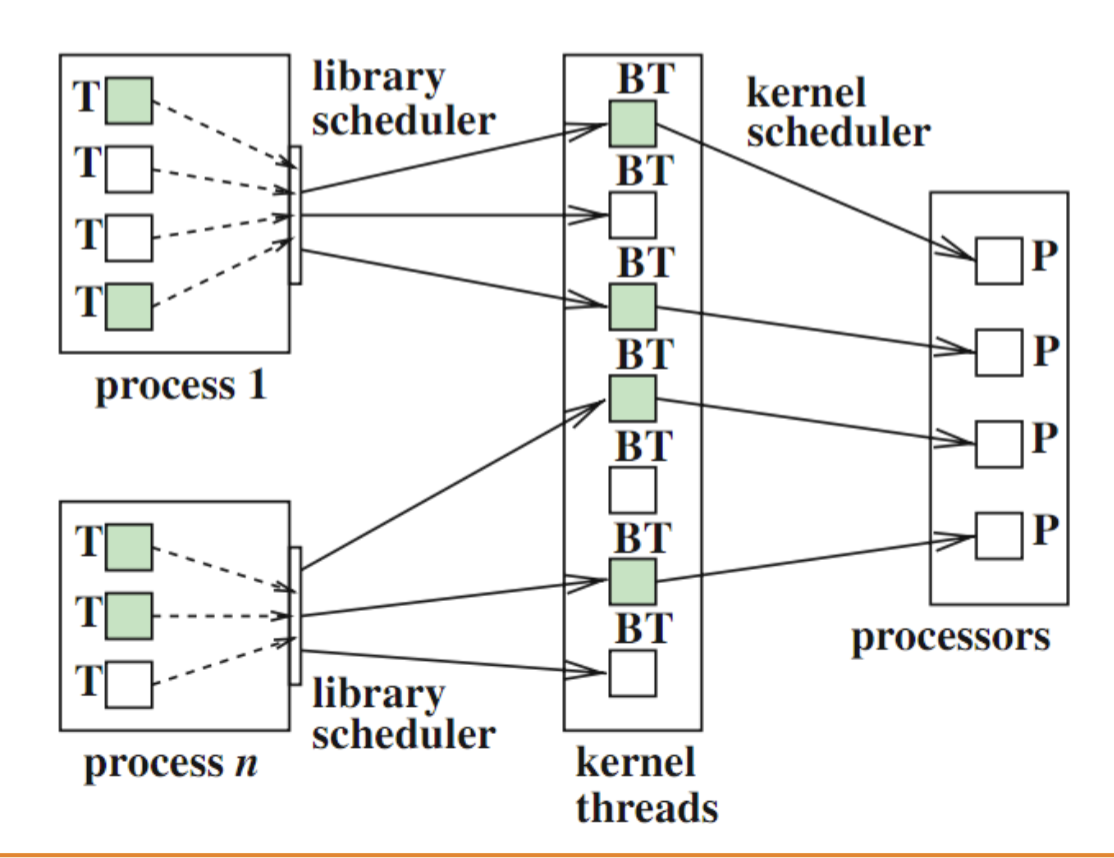

many-to-many mapping

Note

💡 Global variables of a program and all dynamically allocated data objects are shared among threads. Each thread has a private runtime stack for function stack frames. Runtime stack of a thread exists iff the thread is active.

Synchronization

Synchronization mechanisms

Lock:

• acquire() and release()
• Locks can spin (a spinlock) or block (a mutex)

Semaphores

• Semaphore::Wait(): decrement (also P())
• Semaphore::Signal(): increment, (also V())
• Semaphore value is always greater than or equal to 0
• Mutex semaphore (or binary semaphore): count = 1
• Counting semaphore (or general semaphore): count = N

Barrier:

Synchronization problems

Deadlock: exist if and only if the following four conditions hold simultaneously:

1. Mutual exclusion – At least one resource must be held in a non-sharable mode
2. Hold and wait – There must be one process holding one resource and waiting for another resource
3. No pre-emption – Resources cannot be pre-empted (critical sections cannot be aborted externally)
4. Circular wait – There must exist a set of processes [P1, P2, P3,…,Pn] such that P1 is waiting for P2, P2 for P3, etc

Starvation: side effect of the scheduling algorithm

• A high priority process always prevents a low priority process from running on the CPU
• One thread always beats another when acquiring a lock

Livelock:

Classic Synchronization Problems

Producer-consumer:

• mutex = Semaphore(1); items = Semaphore(0)

Producer

event = waitForEvent()
mutex.wait()

buffer.add(event)

items.signal()
mutex.signal()

Consumer

items.wait()
mutex.wait()

event = buffer.get()

mutex.signal()
event.process()

Producer-consumer with Finite Buffer:

Producer

event = waitForEvent()
spaces.wait()
mutex.wait()

buffer.add ( event )

mutex.signal ()
items.signal ()

Consumer

items.wait()
mutex.wait()

event = buffer.get()

mutex.signal()
spaces.signal()
event.process()

Readers-writers Problem:

• Any number of readers can be in the critical section simultaneously
• Writers must have exclusive access to the critical section
• int readers = 0, mutex = Semaphore (1), roomEmpty = Semaphore (1)

Writer

roomEmpty.wait()
# critical section for writers
roomEmpty.signal()

Readers

mutex.wait ()
readers += 1
if readers == 1:
  roomEmpty.wait () # first in locks

mutex.signal ()
# critical section for readers
mutex.wait ()

readers -= 1
if readers == 0:
  roomEmpty.signal () # last out unlocks
mutex.signal ()
