L7: Examples

K-means Clustering using Elastic MapReduce

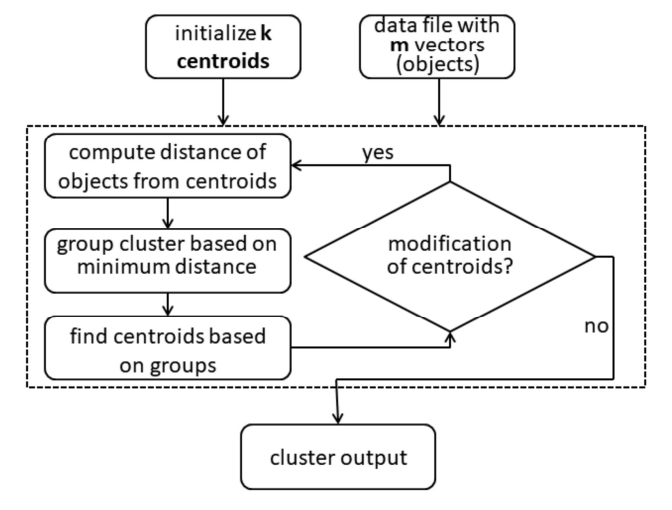

K-means Clustering

Untitled

  • An algorithm to cluster/partition m objects based on n attributes in to k groups (k < m)
  • All the object attributes form a vector space
  • Partitions such that
    • Maximize distances between inter-cluster points
    • Minimize distances between intra-cluster points

K-means in MapReduce

Map phase:

  • Compute distances between an input point and all the previously obtained centroids of clusters
  • Find the cluster with minimum distance
  • Add the input point into the cluster with minimum distance

Reduce phase:

  • Receive all the points belonging to a particular cluster
  • Compute the new centroid

Input:

  • Key: ID of a participating point
  • Value: a vector of attributes of that particular point

Output:

  • Key: ID of a cluster
  • Value: a vector representing centroid for the cluster and number of points inside the cluster

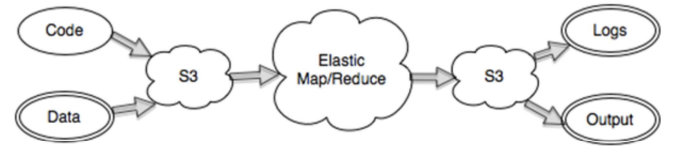

Implementation on AWS

Untitled

  1. Upload data in S3 bucket
  2. Upload executable jar in S3 bucket and create cluster
  3. On completion of execution, view the results in S3

Building a Video-sharing SaaS Cloud Application

Problem: video-sharing website built with AWS components

  • Users upload (store) videos and stream them later
  • Website accepts video with different formats and converts them into a streaming format (encode videos)
    • x264 encoding for the video stream
    • mp4a encoding for the audio stream
  • For simplicity, no user account

AWS Components

Elastic Compute Cloud (Amazon EC2) is a web service that enables launching and managing server instances in Amazon’s data centers

Simple Storage Service (Amazon S3) is a web storage service

Amazon Simple Queue Service is a service that handles message or workflows between other components in a system

Elastic Load Balancing automatically distrubutes incoming traffic across multiple EC2 instances

CloudFormation enables the creation and provision of AWS infrastructure deployments predictably and repeatedly

CloudFront is a web service that speeds up (content) distribution of static and dynamic web content through a worldwide network of edge locations

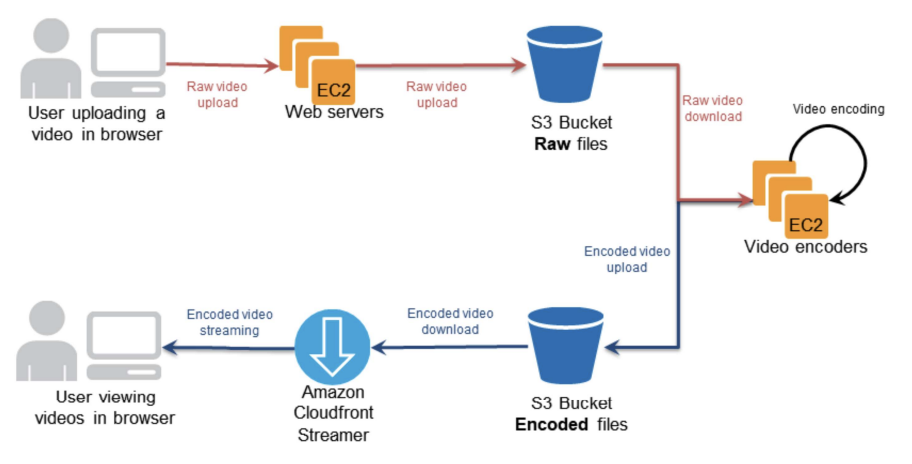

Design of Video-sharing Cloud App

Uploading → Encoding → Streaming

Uploading → Encoding → Streaming

1. Upload Process

Untitled

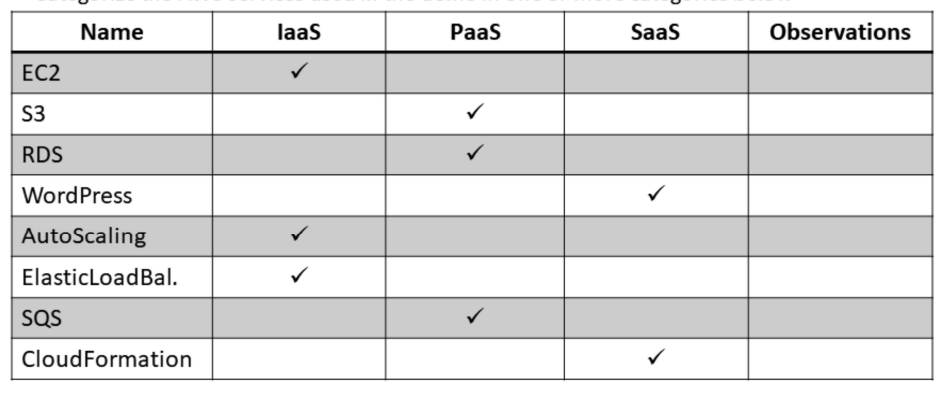

Analysis of Service Models - Uploading

Analysis of Service Models - Uploading

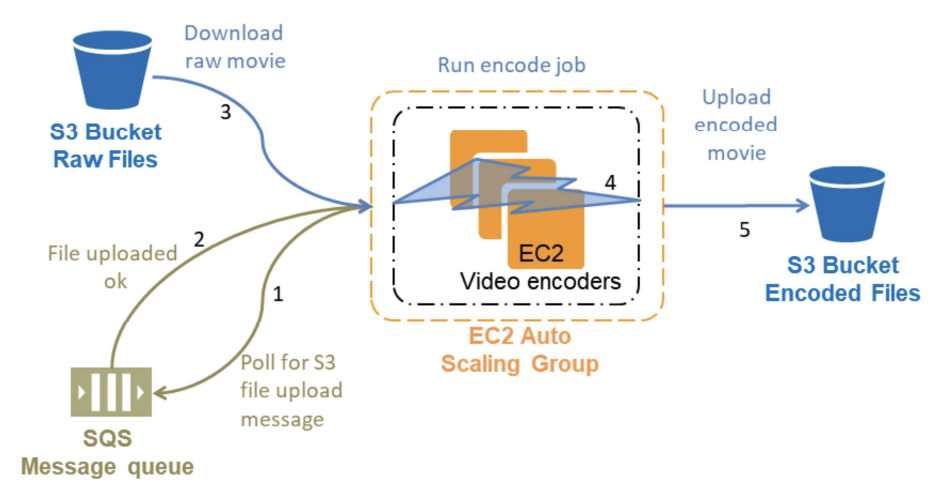

2. Encoding Process

Untitled

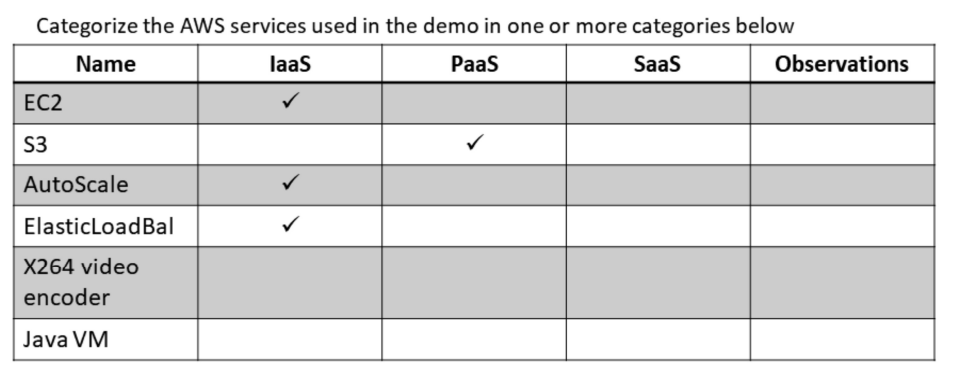

Analysis of Service Models - Encoding

Analysis of Service Models - Encoding

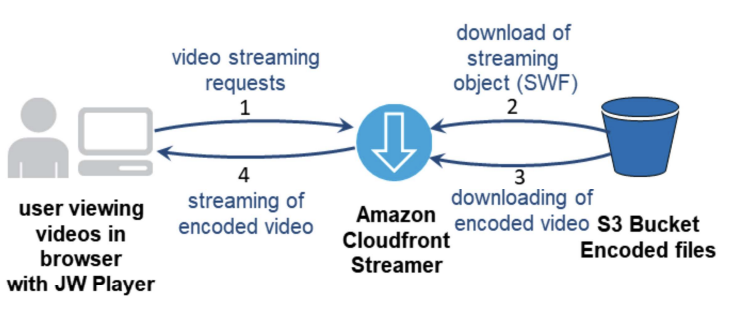

3. Streaming Process

Untitled

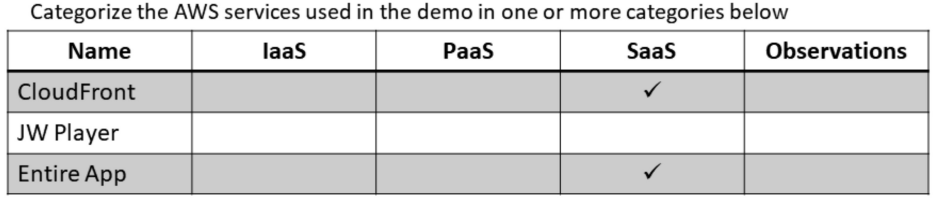

Analysis of Service Models - Streaming

Analysis of Service Models - Streaming

Performance and Scaling

Upload process:

  • EC2 auto-scaling launches/terminates instances on demand
  • ELB routes traffic among available instances
  • S3 storage scales transparently with demand

Encode process:

  • EC2 auto-scaling for encoder
  • SQS can be scaled up by distribution

Streaming process:

  • Cloudfront scales similarly to a CDN

Pricing

Costs: EC2 instances, S3 storage, RDS datbase, CloudFront CDN

Software: no infrastructure costs but based on usage

Example:

Untitled

  • 500 streaming hits per dat (~2 hits/sec)
    • Each user streams 100MB of HD movies (~3mins)
    • Assume same location
    • 50GB per day or 1.5TB per month
  • 50 uploading hits per day
    • Each upload is 100MB of HD movie
    • Encoding process takes 1 min per movie
    • 5 GB per day or 150GB per month
